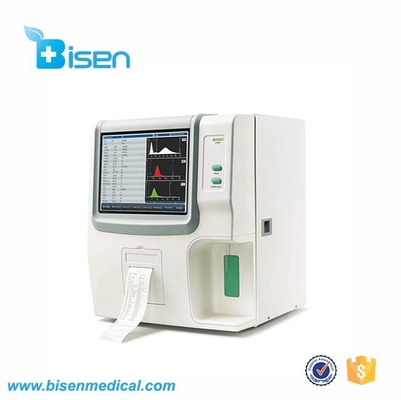

BS-7600 3 Part Differentiation Touch Screen Fully Automated Clinical Cell Counter Machine rayto rt 7600 auto Hematology Analyzer
Features
20 parameters+3 histograms
2 counting channels, 3-part differentiation of WBC
2 Counting mode: whole blood and prediluted
60 samples per hour
Up to 50000 sample results (including histograms) can be stored
10.4'' TFT color LCD with touch screen
Built-in thermal printer, optional external printer
External AC adapter avoids electronic noisies, enhancing accuracy
Multi-language software available on request
Technical Parameters
| Parameters | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR and Histograms for WBC, RBC and PLT |
| Principles | Electrical resistance for counting WBC, RBC and PLT |
| Performance | Parameter Precision (CV %): |
| WBC (109/L) 2.0(7.0-15.0) | |
| RBC (1012/L) 1.5(3.50-6.00) | |
| HGB (g/L) 1.5(110 – 180) | |
| MCV (fL) 0.4(80.0 – 110.0) | |
| PLT (109/L) 4(100 – 500) | |
| Sample Volume | Prediluted: 20µL, Whole Blood: 9.8µL |
| Aperture Diameter | WBC 80µm; RBC 50µm |
| Throughput | 60 samples per hour |
| Display | 10.4'' TFT Color LCD with touch screen, Resolution: 800×600 |
| Alarms | Error messages |
| Carryover | WBC/RBC/HGB<0.5%, PLT<1.0% |
| Input/Output | RS-232, USB, LAN, keyboard and mouse interface |
| Printout | Thermal printer, 55mm width paper, various printout formats, external printer optional |
| Operating Environment | Temperature: 15°C~35°C; Humidity: 10%~90% |
| Power Requirement | AC 110-220V, 50/60Hz |
| Dimension L×W×H(mm) | 436×363×367 |
| Weight | 18Kg |
Reagents
